Which Is Better Counter Flow Or Cross Flow Cooling Towers?

Cooling towers are critical components in various industrial applications where efficient heat dissipation is necessary. These towers are used to remove excess heat from water by transferring it to the atmosphere through evaporation. There are different types of cooling towers, but two of the most popular designs are Counter Flow Cooling Towers and Cross Flow Cooling Towers. Both designs are widely used, yet they have distinct differences that make them suitable for specific applications. In this article, we will compare these two types of cooling towers, focusing on their operation, efficiency, performance, and ideal use cases.



1. Introduction to Cooling Towers

A cooling tower is a heat rejection device that helps dissipate heat from industrial processes, power plants, HVAC systems, and other large-scale operations. The primary purpose of a cooling tower is to cool water, which has been used in various processes and needs to be recycled for further use.

Types of Cooling Towers:

• Open Cooling Towers: In these systems, the water is exposed to the atmosphere, allowing for direct evaporation, which cools the water.

• Closed Cooling Towers: These towers contain a heat exchanger, which keeps the water from direct exposure to the atmosphere, thus minimizing water loss and contamination.

Cooling towers can also be categorized by the way air flows through them. Counter flow and cross flow cooling towers are the two most common designs.

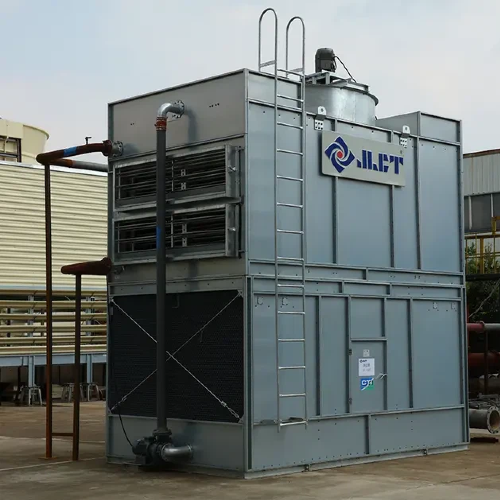

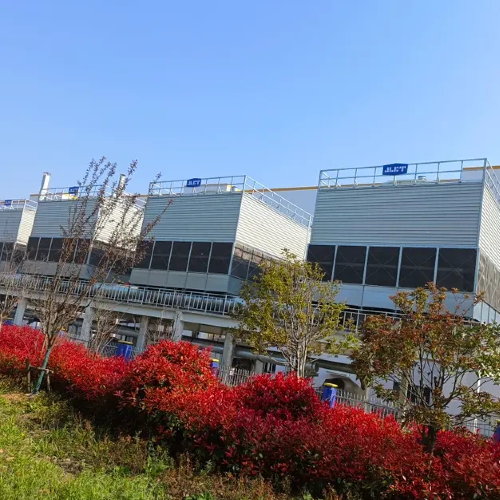

2. Understanding Counter Flow Cooling Towers

What is a Counter Flow Cooling Tower?

A Counter Flow Cooling Tower works on the principle where air and water flow in opposite directions. In this design, water flows vertically down through the tower, while the air flows vertically upward, counteracting the water's downward motion.

How Does a Counter Flow Cooling Tower Work?

The process in a Counter Flow Open Cooling Tower begins when warm water enters the tower from industrial processes. The water is spread evenly across the fill media, which maximizes the surface area for heat exchange. Air is drawn from the bottom of the tower and moves upward, carrying away the heat through evaporation. As the water and air interact, heat is transferred from the water to the air, cooling the water before it is collected in the basin at the bottom for recirculation.

Key Components of Counter Flow Cooling Towers:

• Water Distribution System: Ensures uniform water distribution across the fill material.

• Fill Media: Provides a large surface area for heat exchange.

• Fans: Draw air through the tower to facilitate the cooling process.

• Water Basin: Collects cooled water for reuse.

Advantages of Counter Flow Cooling Towers:

• Higher Efficiency: The opposing flow of air and water creates more time for heat exchange, improving efficiency.

• Compact Design: The vertical design allows counter flow towers to have a smaller footprint compared to cross flow towers.

• Energy Efficiency: Due to the optimal heat exchange, the system consumes less energy in operation.



3. Understanding Cross Flow Cooling Towers

What is a Cross Flow Cooling Tower?

In a Cross Flow Cooling Tower, the water flows horizontally across the fill media, while air flows vertically across the water, forming a crossflow pattern.

How Does a Cross Flow Cooling Tower Work?

Warm water enters the cross flow tower and is distributed across the fill media. The air enters from the sides of the tower and moves horizontally across the water, promoting heat transfer through evaporation. The warm, moist air is then exhausted at the top of the tower, and the cooled water is collected in a basin at the bottom.

Key Components of Cross Flow Cooling Towers:

• Water Distribution System: Distributes water evenly across the fill media.

• Fill Media: Increases the surface area for heat exchange.

• Fans: Create the airflow necessary for the cooling process.

• Water Basin: Collects the cooled water for recirculation.

Advantages of Cross Flow Cooling Towers:

• Ease of Maintenance: The design allows for easier access to the fill media and other components, making maintenance simpler.

• Flexibility in Size: Cross flow towers are often used in larger installations where space is not as limited.

• Effective in Hotter Climates: The design allows for better cooling in high-temperature environments where air is drawn across the fill material effectively.



4. Key Differences Between Counter Flow and Cross Flow Cooling Towers

To better understand which cooling tower is best suited for a particular application, it is essential to compare the Counter Flow and Cross Flow Cooling Towers. Here is a detailed comparison table highlighting the main differences:

Feature	Counter Flow Cooling Tower	Cross Flow Cooling Tower
Water Flow Direction	Vertical, downward	Horizontal, across
Air Flow Direction	Vertical, upward	Horizontal, across
Cooling Efficiency	Generally higher due to longer contact between water and air	Slightly lower due to shorter contact
Energy Consumption	Lower, more energy-efficient	Higher, due to less efficient heat exchange
Space Requirements	More compact, smaller footprint	Larger footprint required
Maintenance	More complex due to design	Easier access, simpler maintenance
Cost	Typically higher	Generally lower initial cost
Performance in Extreme Conditions	Performs better in higher temperatures	Better for large-scale applications



5. Performance and Efficiency: Counter Flow vs Cross Flow

Cooling Efficiency Comparison

In terms of cooling efficiency, Counter Flow Cooling Towers generally outperform Cross Flow Cooling Towers. The counter flow design allows for a longer interaction between the water and the air, which increases the overall heat transfer. This results in better performance and lower energy consumption compared to cross flow towers, which are less efficient in terms of heat exchange.

Energy Consumption

Since counter flow towers are designed to maximize heat transfer, they use less energy to achieve the same cooling capacity. This makes Counter Flow Open Cooling Towers more energy-efficient in the long term, even though their initial setup might be costlier.

Performance in Extreme Environmental Conditions

Counter Flow Cooling Towers are also better suited for hotter and drier climates, where the efficiency of evaporation is critical. The vertical airflow enhances the cooling effect, making them ideal for industries operating in such conditions.



6. Applications and Use Cases

When to Choose Counter Flow Cooling Towers

• Power Plants: In power generation, where consistent and efficient cooling is crucial, counter flow cooling towers are often the preferred choice.

• HVAC Systems: Commercial HVAC systems, particularly in dense, industrial settings, benefit from the compact design of counter flow towers.

• Chemical Processing: Industries that require precise temperature control for chemical reactions often opt for counter flow towers.

When to Choose Cross Flow Cooling Towers

• Large-Scale Industrial Operations: Cross flow cooling towers are suitable for large facilities where space is not a significant constraint.

• Facilities with Frequent Maintenance Needs: Since cross flow towers are easier to maintain, they are ideal for industries where regular maintenance is required.



7. Conclusion

Both Counter Flow Cooling Towers and Cross Flow Cooling Towers offer distinct advantages, and the best choice depends on your specific needs. If you are seeking higher cooling efficiency, a smaller footprint, and energy savings, a Counter Flow Open Cooling Tower would likely be the optimal solution. On the other hand, if maintenance accessibility and larger installations are more important for your operations, a Cross Flow Cooling Tower might be better suited for your facility.

At Zhejiang Jinling Refrigeration Engineering Co., Ltd., we specialize in providing both Counter Flow and Cross Flow Cooling Towers, tailored to meet the specific requirements of your industry. Our team can guide you through the selection process, helping you choose the most effective cooling solution for your needs, whether it’s for energy savings, space optimization, or ease of maintenance.

If you are unsure which system is best for your business, feel free to reach out to us. We are here to help you make an informed decision and ensure your cooling needs are met efficiently and cost-effectively. Contact us today for more information or to discuss how we can support your cooling tower requirements.



8. FAQ

Q1: What are the main differences in water and air flow between counter flow and cross flow cooling towers?
In Counter Flow Cooling Towers, water flows downward, and air flows upward, maximizing the interaction between the two for better heat exchange. In Cross Flow Cooling Towers, water flows horizontally, while air flows across the water, resulting in less efficient heat exchange.

Q2: Which cooling tower design is more energy-efficient?
Counter Flow Cooling Towers are typically more energy-efficient due to their enhanced heat transfer efficiency, which requires less energy to cool the water.

Q3: Can a counter flow cooling tower be used in all industrial applications?
Yes, Counter Flow Cooling Towers are versatile and suitable for various industries, including power plants, chemical processing, and HVAC systems.

Q4: What are the space requirements for counter flow and cross flow cooling towers?
Counter Flow Cooling Towers have a more compact design, making them ideal for installations with limited space. Cross Flow Cooling Towers require a larger footprint due to their horizontal design.

Q5: How do counter flow and cross flow cooling towers differ in terms of maintenance?
Cross Flow Cooling Towers are easier to maintain due to better access to components. In contrast, Counter Flow Cooling Towers require more complex maintenance procedures.
